How to Turn Product Quality Standards Into Checks at Every Supply-Chain Handoff

Executive summary

A product specification controls quality only when it tells people what to check, how to check it, how many units to check, what evidence to retain, and who may release or stop the lot. Broad instructions such as “correct size,” “good finish,” or “strong packaging” invite inconsistent decisions. Replace them with numeric limits, controlled visual references, defined test conditions, sampling rules, defect classifications, and written disposition authority.

The resulting control plan should follow the product through specification release, incoming materials, first article approval, in-process production, final testing, packaging, pre-shipment inspection, and shipment release. Every handoff needs measurable acceptance criteria, a named check owner, a release owner, required records, and a predetermined response to failure.

1. Translate the product standard into measurable acceptance criteria

Identify critical-to-quality requirements

Before production begins, consolidate the controlled drawing, specification sheet, bill of materials, approved sample, packaging specification, labeling instructions, and required regulatory tests. Resolve conflicts before issuing inspection instructions; an inspector should never have to choose between two contradictory revisions.

Organize requirements into practical control categories:

• Dimensions and tolerances
• Materials and components
• Appearance and workmanship
• Fit, function, and performance
• Safety and regulatory requirements
• Labels, barcodes, and traceability
• Packaging and shipping protection

Mark characteristics as critical to quality when failure could affect safety, legal compliance, core function, assembly, traceability, or customer acceptance. These characteristics usually need tighter controls, more frequent checks, or 100% verification.

Write criteria that produce consistent decisions

Use the same structure for every inspection requirement:

• Characteristic: What will be checked
• Specification: Required value, condition, or approved reference
• Tolerance: Permitted variation
• Method: Tool, fixture, test procedure, or visual standard
• Sample: Number or percentage of units
• Frequency: Start-up, interval, changeover, end-of-run, or per lot
• Result rule: Pass/fail threshold
• Record: Evidence to retain
• Owner: Person responsible for checking or release

Prefer objective wording. For example:

• “Length: 250 mm ±2 mm, measured with a calibrated caliper” instead of “correct size.”
• “No scratches visible at 50 cm under 800–1,000 lux lighting” instead of “good finish.”
• “Support 15 kg for 60 seconds without fracture or permanent deformation” instead of “durable.”
• “Barcode grade C or better using the specified verifier” instead of “barcode scans correctly.”

State measurement conditions when temperature, humidity, conditioning time, lighting, test speed, or operator technique can change the result. Add annotated photographs, boundary samples, color references, and diagrams when words alone cannot define the acceptance boundary.

Classify defects and set release authority

Define defect classes and add product-specific examples:

• Critical: Unsafe, illegal, hazardous, or fundamentally unusable; normally zero acceptance.
• Major: Likely to cause functional failure, order rejection, assembly problems, or significant customer dissatisfaction.
• Minor: A limited departure that does not materially affect intended use.

Repeated minor defects may justify escalation when they reveal a systemic process problem. The quality plan must also identify who may accept conforming goods, place a lot on hold, approve rework, grant a deviation, reject or scrap goods, and authorize shipment. Verbal waivers should be prohibited. Any concession must be written, time-limited, approved by an authorized owner, and linked to the affected lot and quantity.

2. Install quality gates at production and logistics handoffs

Approve the first article before full production

The first article should be made using intended production materials, components, tooling, settings, operators, and processes. Inspect all critical-to-quality characteristics rather than applying a reduced routine sample.

Record:

• Actual dimensions and functional results
• Material and component identifiers
• Tooling, mold, fixture, or program version
• Relevant production settings
• Photographs of key features
• Label and preliminary pack-out checks
• Deviations and required corrections

Retain a labeled approved sample when practical, or maintain a controlled digital reference with measurements and photographs. Production release should require a signed approval from the designated quality owner.

First article approval is not permanent. Require reapproval after design or material changes, component substitutions, tooling changes, major repairs, process relocation, or a prolonged production gap.

Check the process where defects are created

Map the flow through forming, machining, assembly, finishing, testing, labeling, and packing. Place checks immediately after high-risk operations so nonconforming output is detected before additional work or materials are added.

Typical controls include:

• Dimensions after molding, cutting, or machining
• Torque after assembly
• Adhesion, thickness, or cure after coating
• Polarity and continuity after wiring
• Fill weight after filling
• Barcode content and readability after labeling
• Pack count and orientation during packing

Define start-up, fixed-interval, changeover, and end-of-run frequencies. Record actual values for critical characteristics rather than entering only “pass.”

Reaction limits must be explicit. A critical failure should stop the process, trigger segregation of output made since the last confirmed good result, and prevent restart until the cause is corrected. The affected quantity then needs sorting, rework, or reinspection under a documented plan.

Use pre-shipment inspection as the final release gate

Conduct pre-shipment inspection only when the order is sufficiently complete and packed for representative random selection. The inspection should verify product identity, model, color, size, assortment, purchase-order quantity, carton count, workmanship, dimensions, weight, function, accessories, manuals, labels, barcodes, date codes, origin marks, and packaging.

The report should identify the lot, sampling plan, selected cartons, defect counts by class, test results, photographs, and disposition. Results must be compared with the current controlled specification and approved references. Shipment remains on hold until the authorized release owner signs approval or grants a documented, bounded exception.

Treat packaging and labels as measurable requirements

Define primary packaging, inner packs, and master cartons separately. Verify packaging materials, dimensions, unit orientation, count, inserts, bags, seals, moisture controls, carton strength, closure method, shipping marks, label placement, assortment, and carton-level traceability.

Use measurable tests where relevant:

• Drop test with a defined height, orientation, and sequence
• Compression or stacking requirement
• Seal-strength or leak test
• Pack-out weight tolerance
• Barcode content, readability, and grade

The test method must also define acceptable post-test condition. A carton may show limited cosmetic damage while the product must remain functional and undamaged, but that distinction must be written. Photograph the approved pack-out and retain the images with the packaging specification.

3. Apply sampling according to risk

Define the inspection lot and random selection

Define a lot by purchase order, SKU, production period, line, batch, material lot, or another traceable boundary. Do not combine materially different runs merely to simplify inspection.

Select units randomly across cartons, pallet positions, production stages, shifts, lines, cavities, or batches as applicable. Samples prepared in advance by production personnel do not replace random selection.

Match the sampling plan to defect severity

When using AQL sampling, state the standard, lot size, inspection level, sample size, and separate acceptance numbers for critical, major, and minor defects. Critical defects normally require zero acceptance unless an explicit controlled requirement says otherwise.

Tighten inspection after a failed lot, during corrective-action verification, following a product or process change, or when defects recur or cluster. Use 100% inspection for safety-critical, legally required, automatically testable, or otherwise unacceptable-to-sample characteristics.

Passing a sample does not prove that every unit is defect-free. It supports a controlled decision about the defined lot under the stated sampling plan.

Predetermine the response to failure

A failed sample should trigger containment of the entire affected lot. Predetermined disposition options may include:

• 100% sorting
• Rework followed by reinspection
• Additional testing under an approved plan
• Lot rejection and replacement
• A written concession for a clearly bounded deviation

After rework, select a new representative sample. Do not reinspect only the units that previously failed. Repeated failures should trigger formal corrective action rather than repeated sorting.

4. Connect checks, records, and ownership

Handoff quality matrix

Handoff or gate	Required checks	Example acceptance criteria	Sampling or frequency	Required record	Check owner	Release or failure action
Specification release	Documents, tolerances, methods, defect classes	Every CTQ has a value or reference, tolerance, method, record, and owner	Every new or revised specification	Approved specification and revision log	Product/quality owner	Block first article until complete
Incoming material	Identity, material, dimensions, appearance	Approved part and material; dimensions within tolerance; no critical defects	Defined per-lot plan; 100% for designated critical items	Incoming inspection report and material-lot record	Incoming quality owner	Accept, hold, or reject lot
First article	Full CTQ review, function, labels, pack-out	All critical requirements pass; no unauthorized substitution	Unit from intended production setup	Signed report, measurements, photos, retained reference	Designated quality approver	Release production or require resubmission
In-process handoff	Operation-specific CTQs	Actual results remain within specification and reaction limits	Start-up, interval, changeover, end-of-run	Traveler, control sheet, or digital record	Operator; line quality verifies	Continue, stop, segregate, correct, reinspect
Final test	Function, completeness, safety checks	Defined function cycle passes; accessories complete; zero critical failures	Risk-based sample or 100%	Test log linked to lot or serial number	Final-test owner	Release to packing or hold
Packaging	Pack-out, protection, labels, carton count	Correct quantity and orientation; readable barcode; transport test passes	First carton plus interval and final checks	Packaging checklist and photos	Packing lead; quality verifies	Continue or stop and repack affected units
Pre-shipment inspection	Quantity, workmanship, function, labels, packaging	Defect counts within acceptance numbers; all critical tests pass	Random sample under stated plan	Pre-shipment inspection report	Designated final inspector	Release, hold, reject, or approve rework
Shipment release	Records, deviations, unresolved issues	Records complete; no unresolved critical defects; deviations linked to lot	Every shipment	Signed shipment-release record	Authorized buyer/quality owner	Permit loading or maintain hold

Minimum handoff checklist

• Current specification revision is available at the inspection point.
• Lot, batch, SKU, and quantity are identifiable.
• Measuring tools and fixtures are suitable and within calibration.
• Sample selection follows the approved method.
• Actual values, defect locations, classes, and quantities are recorded.
• Failures are photographed with product identification and scale where useful.
• Nonconforming goods are segregated physically and in inventory records.
• A named owner is assigned to disposition.
• Check and release records include signatures and dates.
• Rework, concessions, and corrective actions link to the original record.

Preserve traceable records

Use controlled templates with revision numbers and mandatory fields. Link inspection evidence to the purchase order, production lot, material batch, date, line, shift, carton, and serial number where applicable.

Retain approved specifications and revisions, first article reports, incoming and in-process results, functional and safety logs, packaging checks, transport-test results, pre-shipment reports, deviations, rework records, reinspection results, and shipment-release authorization. Set retention periods according to product risk, warranty exposure, regulatory obligations, and customer requirements.

Close failures with corrective action

Distinguish immediate correction from corrective action. Sorting, repair, replacement, and rework address affected goods; corrective action removes the cause of recurrence.

A corrective-action record should include:

1. A specific problem statement and defect evidence
2. Affected and potentially affected lots
3. Immediate containment
4. Root-cause analysis
5. Permanent action, owner, and deadline
6. Updated instructions, fixtures, tests, or criteria
7. An effectiveness check using later production data

Feed confirmed lessons back into the quality matrix, first article requirements, in-process frequency, sampling level, and packaging controls. Close the action only after an agreed number of subsequent runs or lots demonstrates that the solution is effective.

Image gallery

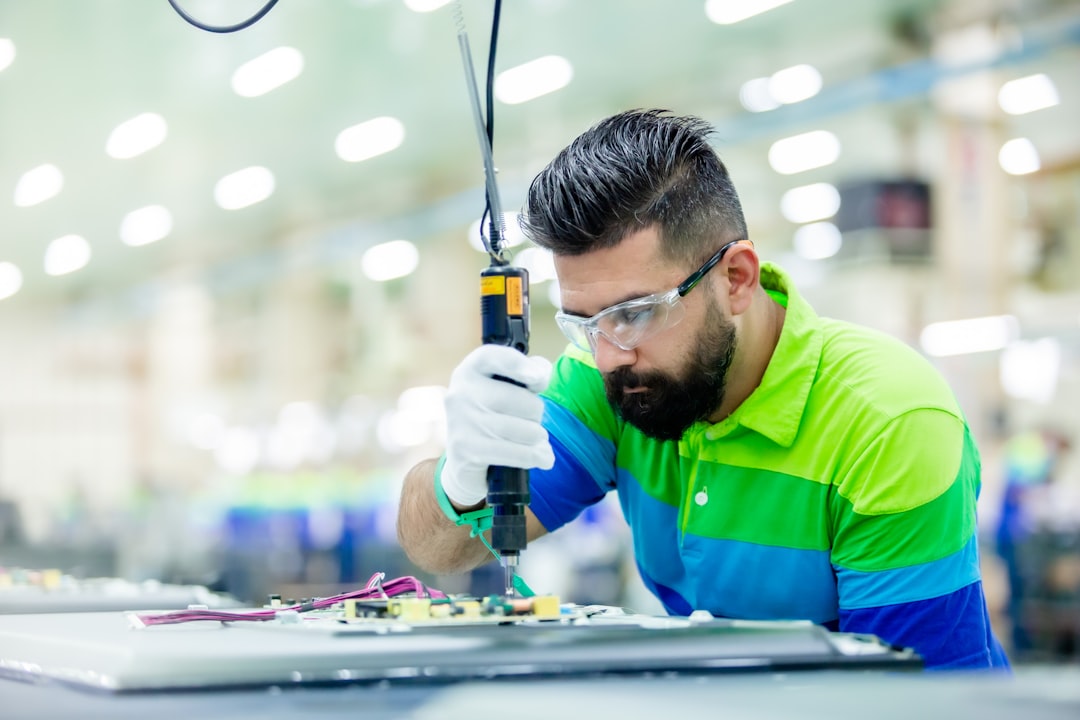

Quality standards become effective when operators can verify measurable requirements at each production handoff.

Photo by Alireza Hatami on Unsplash. Licensed under the Unsplash License.

Final next move

Pilot the matrix on one active order

Choose one SKU and map its next five gates: specification release, first article, in-process production, packaging, and pre-shipment release. Assign every critical-to-quality requirement to a gate, then add a numeric limit, controlled visual reference, or binary test result.

For each check, define the sample size, frequency, required record, check owner, and release owner. Run the matrix during the next production lot and record every criterion that produces uncertainty or disagreement. Revise those criteria until different inspectors reach the same conclusion.

Track three implementation measures:

• Percentage of checks with measurable acceptance criteria
• Percentage of handoffs with complete, traceable records
• Repeat-defect rate after corrective action

Expand the method to additional products only after the pilot produces consistent inspection decisions, complete records, and unambiguous shipment-release control.
